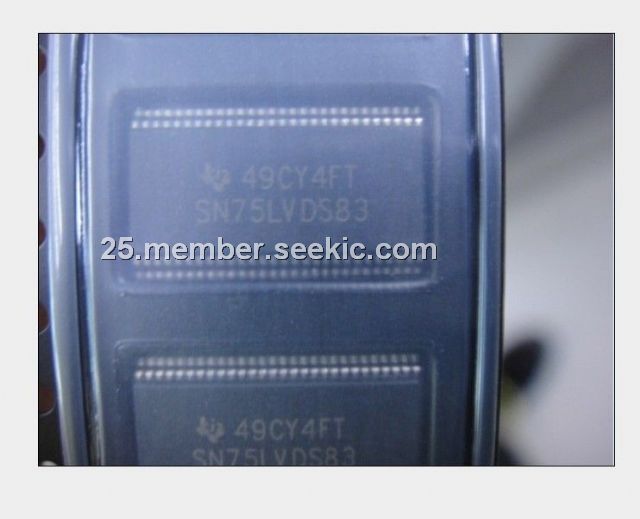

Product Summary
The SN75LVDS83 FlatLink transmitter contains four 7-bit parallel-load serial-out shift registers, a 7× clock synthesizer, and five low-voltage differential-signaling (LVDS) line drivers in a single integrated circuit. These functions allow 28 bits of single-ended low-voltage TTL (LVTTL) data to be synchronously transmitted over five balanced-pair conductors for receipt by a compatible receiver, such as the SN75LVDS82. The SN75LVDS83 can also be used in 21-bit links with the SN75LVDS86 receiver.
Parametrics
SN75LVDS83 absolute maximum ratings: (1)Supply voltage range, VCC (see Note 1): –0.5 V to 4 V; (2)Output voltage range, VO (all terminals): –0.5 V to VCC + 0.5 V; (3)Input voltage range, VI (all terminals): –0.5 V to 5.5 V; (4)Continuous total power dissipation: See Dissipation Rating Table; (5)Storage temperature range, Tstg: –65 to 150 ℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260 ℃.
Features
SN75LVDS83 features: (1)28:4 Data Channel Compression at up to 227.5 Million Bytes per Second Throughput; (2)Suited for SVGA, XGA, or SXGA Display Data Transmission From Controller to Display With Very Low EMI; (3)28 Data Channels and Clock-In Low-Voltage TTL; (4)4 Data Channels and Clock-Out Low-Voltage Differential; (5)Operates From a Single 3.3-V Supply With 250 mW (Typ); (6)ESD Protection Exceeds 6 kV; (7)5-V Tolerant Data Inputs; (8)Selectable Rising or Falling Edge-Triggered Inputs; (9)Packaged in Thin Shrink Small-Outline Package With 20-Mil Terminal Pitch; (10)Consumes Less Than 1 mW When Disabled; (11)Wide Phase-Lock Input Frequency Range: 31 MHz to 68 MHz; (12)No External Components Required for PLL; (13)Outputs Meet or Exceed the Requirements of ANSI EIA/TIA-644 Standard.

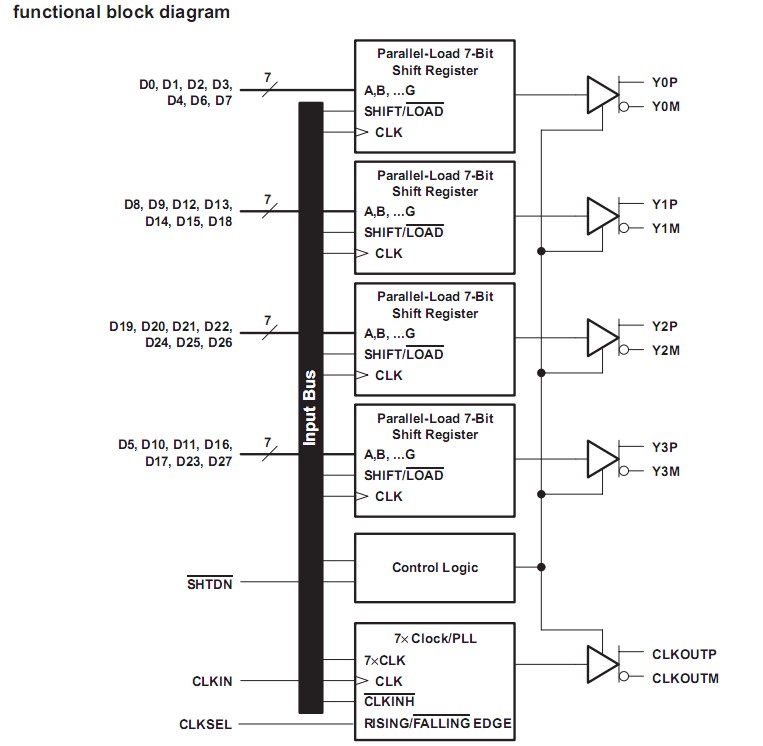

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN75LVDS83 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
SN75LVDS83ADGG |
Texas Instruments |
Bus Transmitters Flatlink 10-100MHz Transmitter |
Data Sheet |
|
|
||||||||||||
|
SN75LVDS83BDGG |
Texas Instruments |
Bus Transmitters FlatLink 10-135MHz Transmitter |
Data Sheet |
|
|
||||||||||||
|
SN75LVDS83BZQLR |
Texas Instruments |
Bus Transmitters FlatLink 10-135MHz Transmitter |
Data Sheet |
|
|
||||||||||||
|
SN75LVDS83BDGGR |
Texas Instruments |
Bus Transmitters FlatLink 10-135MHz Transmitter |
Data Sheet |
|
|
||||||||||||
|
SN75LVDS83ADGGR |
Texas Instruments |
Bus Transmitters Flatlink 10-100MHz Transmitter |
Data Sheet |
|
|
||||||||||||
|
SN75LVDS83CZQLR |
Texas Instruments |
Display Interface IC FlatLink 10-85MHz Transmitter |
Data Sheet |
|
|
||||||||||||
|
SN75LVDS83DGGG4 |
Texas Instruments |
Bus Transmitters Flatlink |
Data Sheet |
|
|
||||||||||||
