Product Summary
The LM140H is the monolithic 3-terminal positive voltage regulator which employs internal current-limiting, thermal shutdown and safe-area compensation, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1.0A output current. The LM140H is intended as fixed voltage regulators in a wide range of applications including local (on-card) regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulators, the LM140H can be used with external components to obtain adjustable output voltages and currents.
Parametrics
LM140H absolute maximum ratings: (1)Internal Power Dissipation (Note 2): Internally Limited; (2)Maximum Junction Temperature: 150℃; (3)Storage Temperature Range: -65 to +150℃; (4)Lead Temperature (Soldering, 10 sec.): TO-3 Package (K) 300℃; TO-220 Package (T), TO-263 Package (S) 230℃; (5)ESD Susceptibility (Note 3): 2 kV.
Features
LM140H features: (1)Complete specifications at 1A load; (2)Output voltage tolerances of ±2% at Tj= 25℃ and ±4% over the temperature range (LM140A/LM340A); (3)Line regulation of 0.01% of VOUT/V of ?VIN at 1A load (LM140A/LM340A); (4)Load regulation of 0.3% of VOUT/A (LM140A/LM340A); (5)Internal thermal overload protection; (6)Internal short-circuit current limit; (7)Output transistor safe area protection; (8)P+ Product Enhancement tested.

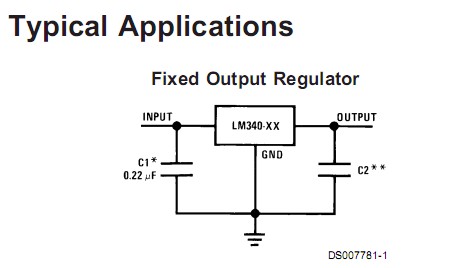

Diagrams
 |
