Product Summary
The LM2901DR consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV max for all four comparators. The LM2901DR is designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The comparator also has a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage. Application areas include limit comparators, simple analog to digital converters; pulse, squarewave and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates. The LM2901DR was designed to directly interface with TTL and CMOS.
Parametrics
LM2901DR absolute maximum ratings: (1)Supply Voltage, V+: 36 VDC or ±18 VDC; (2)Differential Input Voltage: 36 VDC; (3)Input Voltage: -0.3 VDC to +36 VDC; (4)Input Current (VIN< -0.3 VDC): 50 mA; (5)Power Dissipation, Molded DIP: 1050 mW; (6)Cavity DIP: 1190 mW; (7)Small Outline Package: 760 mW; (8)Output Short-Circuit to GND, Continuous; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (Soldering, 10 seconds): 260℃; (11)Operating Temperature Range: -40℃ to +85℃; (12)ESD rating (1.5 kΩ in series with 100 pF): 600V.
Features
LM2901DR features: (1)Wide supply voltage range; (2)2 to 36 VDC or ±1 to ±18 VDC; (3)Very low supply current drai(0.8 mA): independent of supply voltage; (4)Low input biasing current: 25 nA; (5)Low input offset current: ±5 nA; (6)Offset voltage: ±3 mV; (7)Input common-mode voltage range includes GND; (8)Differential input voltage range equal to the power supply voltage; (9)Low output saturatiovoltage: 250 mV at 4 mA; (10)Output voltage compatible with TTL, DTL, ECL, MOS and CMOS logic systems.

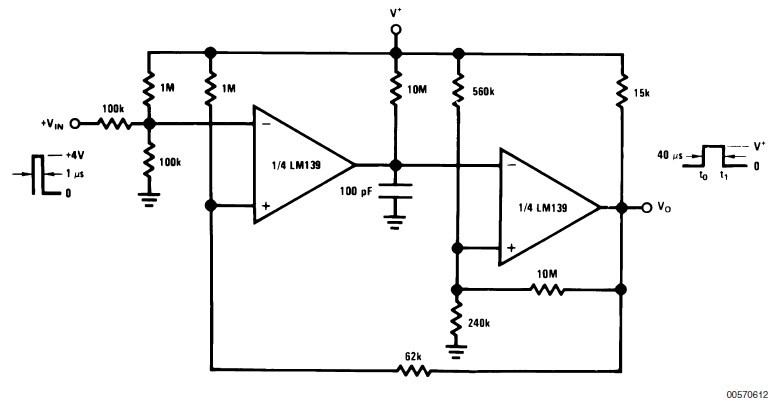

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2901DR |
Texas Instruments |
Comparator ICs Quad Diff Ind Temp |
Data Sheet |
|
|
||||||||||||
|
LM2901DR2 |
ON Semiconductor |
Comparator ICs 3-36V Qud Comparator |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2901DRG3 |
Texas Instruments |
Comparator ICs Quad Diff Comparator |
Data Sheet |
|
|
||||||||||||
|
LM2901DR2G |
ON Semiconductor |
Comparator ICs 3-36V Qud Comparator -40 to 105 deg C |
Data Sheet |
|
|
||||||||||||
|
LM2901DRG4 |
Texas Instruments |
Comparator ICs Quad Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
LM2901DRE4 |
Texas Instruments |
Comparator ICs Quad Differential Comparator |
Data Sheet |
|
|
||||||||||||
