ICE3BR4765J

Product Summary

The CoolSET jitter series (ICE3BR4765J) is the latest version of CoolSETF3. It targets for the Off-Line battery adapters and low cost SMPS for lower power range such as application for DVD R/W, DVD Combi, Blue ray DVD player, set top box, etc. Besides inherited the outstanding performance of the ICE3BR4765J in the BiCMOS technology, active burst mode, auto-restart protection, propagation delay compensation, etc., The ICE3BR4765J has some new features such as built-in soft start time, built-in blanking window, built-in frequency jitter, soft gate driving, etc. In case a longer blanking time is needed for high load application, a simple addition of capacitor to BA pin can serve the purpose. Furthermore, an external auto-restart enable feature can provide extra protection when there is a need of immediate stop of power switching.

Parametrics

ICE3BR4765J absolute maximum ratings: (1)Drain Source Voltage VDS: - 650 V; (2)Pulse drain current, pulse width tp limited by Tj=150℃, ID_Puls: 1.67 A; (3)Avalanche energy, repetitive tAR limited by max. Tj=150℃, EAR: 0.01 mJ; (4)Avalanche current, repetitive tAR limited by max. Tj=150℃, IAR: 0.5 A; (5)VCC Supply Voltage VVCC: -0.3 to 27 V; (6)FB Voltage VFB: -0.3 to 5.5 V; (7)BA Voltage VBA: -0.3 to 5.5 V; (8)CS Voltage VCS: -0.3 to 5.5 V; (9)Junction Temperature Tj: -40 to 150 ℃; (10) Storage Temperature TS: -55 to 150 ℃; (11)Thermal Resistance Junction -Ambient, RthJA: 90 K/W; (12)Soldering temperature, wavesoldering only allowed at leads, Tsold: 260 ℃ 1.6mm (0.063in.) from case for 10s; (13)ESD Capability (incl. Drain Pin) VESD: 2 kV Human body model.

Features

ICE3BR4765J features: (1)650V avalanche rugged CoolMOSwith built-in Startup Cell; (2)Active Burst Mode for lowest Standby Power; (3)Fast load jump response in Active Burst Mode; (4)65kHz internally fixed switching frequency; (5)Auto Restart Protection Mode for Overload, Open Loop, VCC Undervoltage, Overtemperature &Overvoltage; (6)Built-in Soft Start; (7)Built-in blanking window with extendable blanking time for short duration high current; (8)External auto-restart enable pin; (9)Max Duty Cycle 75%; (10)Overall tolerance of Current Limiting < %; (11)Internal PWM Leading Edge Blanking; (12)BiCMOS technology provide wide VCC range; (13)Built-in Frequency jitter and soft driving for low EMI.

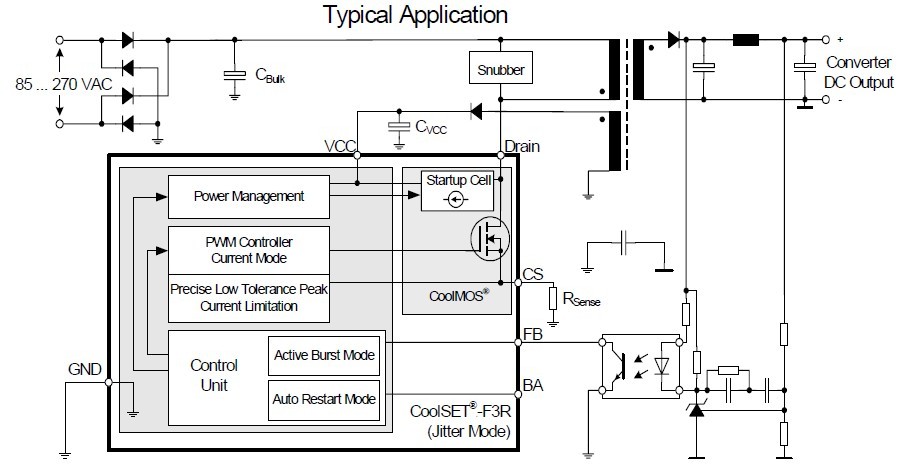

Diagrams
