The FS04X-1 is a Switching Spark Gap.
Parametrics
FS04X-1 absolute maximum ratings: (1)Nominal breakdown voltage VN: 400 V; (2)Initial values, Static breakdown voltage VS: First ignition value VS, FTE after 24 hours in darkness: ≤ 460V; (3)Following ignition values (selection limits): 360 to 420V; (4)Following ignition values VS, FIV: 350 to 430V; (5)Breakdown voltage VB (measuring time 200 ms): First ignition value VB, FTE: ≤ 460V; (6)Following ignition values VB, FIV: 340 to 460V.
Features
FS04X-1 features: (1)Open circuit voltage V0: 500V; (2)Loading resistance R: 10kΩ; (3)Discharge capacitance C: 680nF; (4)Inductance L: 0.5 μH; (5)Discharge peak current IP: ~ 500 A; (6)Insulation resistance at 100 V: > 100V; (7)Early ignition values below 340 V: ≤ 2 %; (8)Breakdown time: ≤ 50ns; (9)Maximum switching frequency: 200Hz; (10)Maximum loading current: 50mA; (11)Weight: ~ 2g.

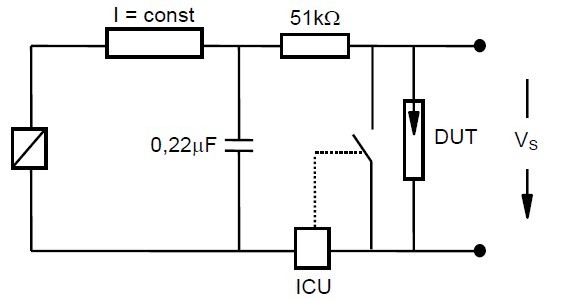

Diagrams
