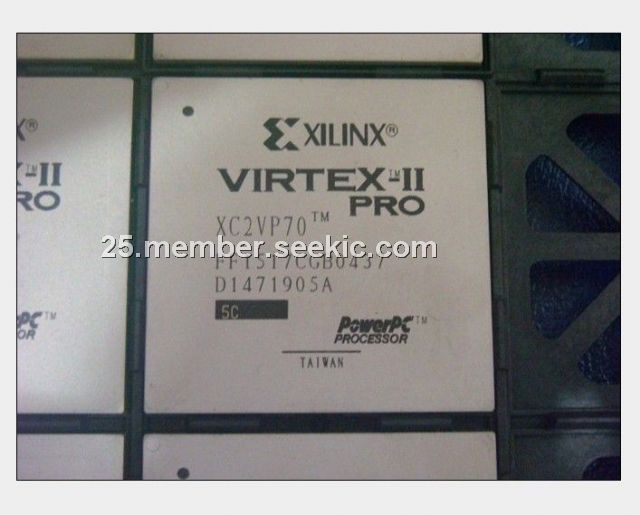

Product Summary
The XC2VP70-5FF1517C is provided in -7, -6, and -5 speed grades, with -7 having the highest performance. The XC2VP70-5FF1517C Pro DC and AC characteristics are specified for both commercial and industrial grades.
Parametrics
XC2VP70-5FF1517C absolute maximum ratings: (1)Internal supply voltage relative to GND, VCCINT: –0.5 to 1.6V; (2)Auxiliary supply voltage relative to GND, VCCAUX: –0.5 to 3.0V; (3)Output drivers supply voltage relative to GND, VCCO: –0.5 to 3.75V; (4)Key memory battery backup supply, VBATT: –0.5 to 4.05V; (5)Input reference voltage, VREF: –0.3 to 3.75V.
Features
XC2VP70-5FF1517C features: (1)High Performance Platform FPGA Solution, Including; (2)Up to twenty RocketIO or RocketIO X embedded Multi-Gigabit Transceivers (MGTs); (3)Up to two IBM PowerPC RISC processor blocks; (4)Based on Virtex-II Platform FPGA Technology; (5)Flexible logic resources; (6)SRAM-based in-system configuration; (7)Active Interconnect technology; (8)SelectRAM+ memory hierarchy; (9)Dedicated 18-bit x 18-bit multiplier blocks; (10)High-performance clock management circuitry; (11)SelectI/O-Ultra technology; (12)XCITE Digitally Controlled Impedance (DCI) I/O.
Diagrams
 |
