Product Summary

The SAA7324 is a single chip combining the functions of a CD decoder, digital servo and bitstream DAC. The decoder/servo part is based on the SAA737x (CD7) and is software compatible with this design. Extra functions are controlled by use of shadow registers (see Section 7.15.3).

Parametrics

SAA7324 absolute maximum ratings: (1)supply voltage, n = 4 mode: 3.0 V min, 3.3 V typ, 3.6V max; (2)supply voltage, n = 1 or 2 mode; note 1: 2.4 to 3.6 V; (3)supply current, VDD = 3.3 V: 20 mA; (4)supply current,VDD = 2.4 V: 14 mA; (5)crystal frequency: 4 min, 8.4672 typ, 35 max MHz; (6)ambient temperature: -10 to +70 ℃; (7)storage temperature: -55 to +125 ℃.

Features

SAA7324 features: (1)Up to 4 times speed mode; (2)Low voltage operation at up to 2 times speed; (3)Lock-to-disc mode; (4)Full error correction strategy, t = 2 and e = 4; (5)Full CD graphics interface; (6)All standard decoder functions implemented digitally on chip; (7)FIFO overflow concealment for rotational shock resistance; (8)Digital audio interface (EBU), audio and data; (9)Two and four times oversampling integrated digital filter, including fs mode; (10)Audio data peak level detection; (11)Kill interface for external DAC deactivation during digital; (12)silence; (13)All SAA737x (CD7) digital servo and high-level functions; (14)Low focus noise; (15)Same playability performance as SAA737x (CD7); (16)Automatic closed-loop gain control available for focus and radial loops; (17)Pulsed sledge support.

Diagrams

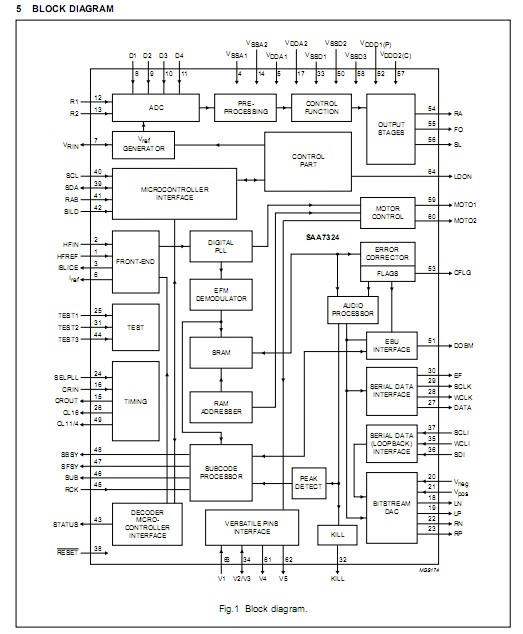

SAA7324 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

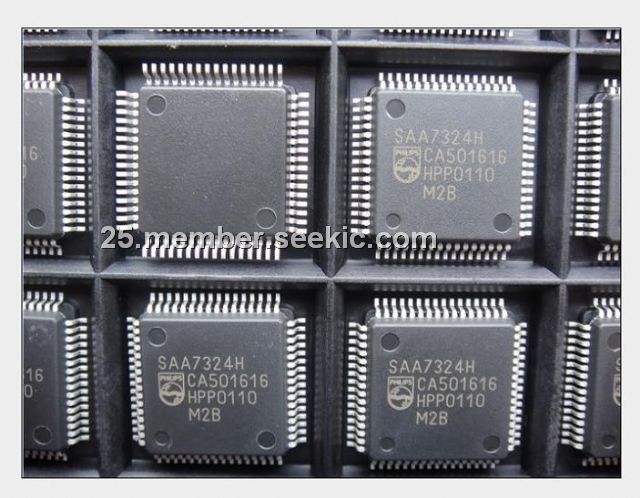

SAA7324
SAA7324
Other

Data Sheet
Negotiable
SAA7324HBG
SAA7324HBG
NXP Semiconductors
Encoders, Decoders, Multiplexers & Demultiplexers COMPACT DISC SYSTEMS
Data Sheet
Negotiable
SAA7324H/M2B,557
SAA7324H/M2B,557
NXP Semiconductors
Encoders, Decoders, Multiplexers & Demultiplexers COMPACT DISC SYSTEMS
Data Sheet
Negotiable
