Product Summary
The BD9897FS is a silicon monolithic integrated circuit.
Parametrics
BD9897FS absolute maximum ratings: (1)Supply Voltage VCC: 36 V; (2)BST pin BST: 40 V; (3)SW pin SW: 36 V; (4)BST-SW voltage difference BST-SW: 7 V; (5)Operating Temperature Range Topr: -40 to+85 ℃; (6)Storage Temperature Range Tstg: -55 to+150 ℃; (7)Maximum Junction Temperature Tjmax: +150 ℃; (8)Power Dissipation Pd: 950 mW.
Features
BD9897FS features: (1)36V High voltage process; (2)1ch control with Full-Bridge; (3)Lamp current and voltage sense feed back control; (4)Sequencing easily achieved with Soft Start Control; (5)Short circuit protection with Timer Latch; (6)Under Voltage Lock Out; (7)Mode-selectable the operating or stand-by mode by stand-by pin; (8)Synchronous operating the other BD9897FS IC; (9)BURST mode controlled by PWM and DC input; (10)Output liner Control by external DC voltage.

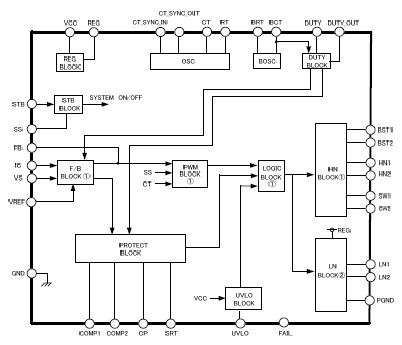

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

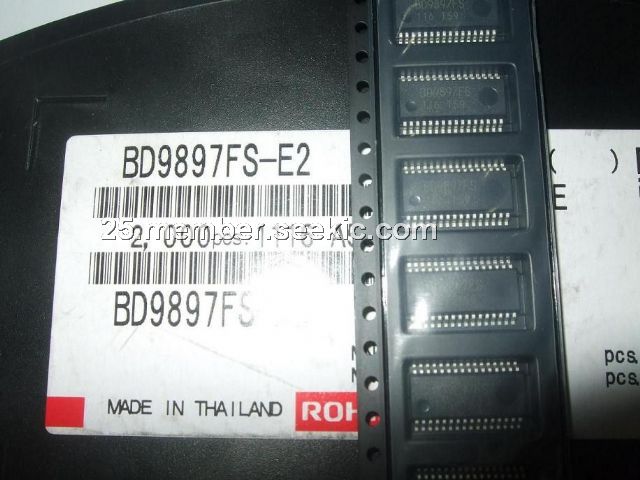

 BD9897FS-E2 |
ROHM Semiconductor |
Display Drivers & Controllers Invert. Cont. IC For Med-Lg Flat Panels |
Data Sheet |
|
|
||||||||||||
