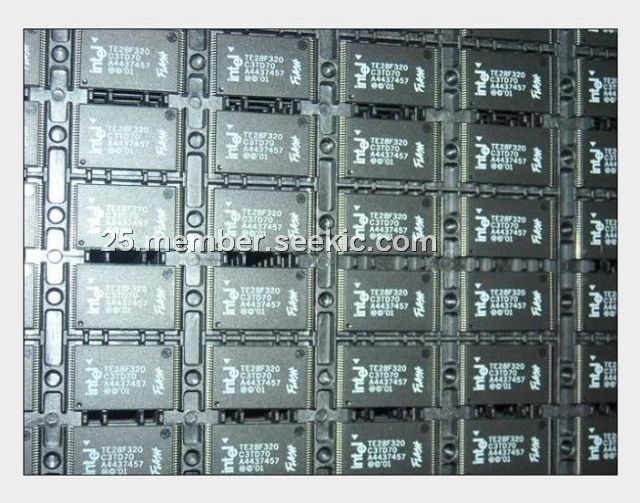

TE28F320C3TD70

Block FlashMemory, TSOP48, read-array mode, 128-bit protection register, 100 mA, –0.2 V to +3.6 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.10~2.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.10~2.30

PartNumber:: TE28F320C3TD70

Brand:: Intel Corporation - Intel | Pack: TSOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Yinky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:TE28F320C3TD70
US $2.10 - 2.30
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TE28F320C3TD70 is a kind of Block FlashMemory (C3). The TE28F320C3TD70 provides high-performance asynchronous reads in package-compatible densities with a 16 bit data bus. Individually-erasable memory blocks are optimally sized for code and data storage. Eight 4 Kword parameter blocks are located in the boot block at either the top or bottom of the device memory map. The rest of the memory array is grouped into 32 Kword main blocks.

Parametrics

TE28F320C3TD70 maximum ratings: (1)Extended Operating Temperature: During Read: –40℃ to +85℃; During Block Erase and Program: –40℃ to +85℃; Temperature under Bias –40℃ to +85℃; (2)Storage Temperature: –65℃ to +125℃; (3)Voltage On Any Pin (except VCC and VPP) with Respect to GND: –0.5 V to +3.7 V 1; (4)VPP Voltage (for Block Erase and Program) with Respect to GND: –0.5 V to +13.5 V 1,2,3; (5)VCC and VCCQ Supply Voltage with Respect to GND: –0.2 V to +3.6 V; (6)Output Short Circuit Current: 100 mA.

Features

TE28F320C3TD70 features: (1)supports read-array mode operations at various I/O voltages (1.8 V and 3 V) and erase and program operations at 3 V or 12 V VPP; (2)a 128-bit protection register enabling security techniques and data protection schemes through a combination of factory-programmed and user-programmable OTP data registers; (3)a command User Interface(CUI) serves as the interface between the system processor and internal operation of the device; (4)offers three low-power saving features: Automatic Power Savings (APS), standby mode, and deep power-down mode; (5)available in 48-lead TSOP, 48-ball VF BGA, 48-ball μBGA, and Easy BGA packages.
