Product Summary

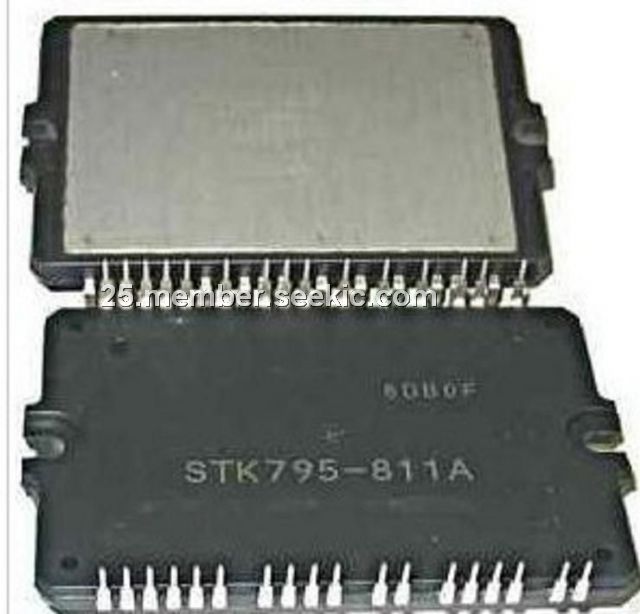

The STK795-811 is a Chopper Type Voltage Regulator.
Parametrics
STK795-811 absolute maximum ratings: (1)Maximum DC Input Voltage, Vin(DC) max: 40V; (2)Maximum Output Current, Io max: 3A; (3)Operating Case Temperature, Tc: 105℃; (4)Junction Temperature, Tj: 150℃; (5)Storage Temperature, Tstg: -30 to +105℃.
Features
STK795-811 features: (1)Self-oscillation type chopper regulator power IC using Sanyo original IMST (Insulated Metal Substrate Technology) substrate. -The STK795, being a 5V chopper IC, is more advantageous in the following points as compared with series regulator (dropper type) ICs.; (2)Functional trimming is used to set 5V output with high accuracy: Cutoff function to cut off output voltage by external signal; (3)Contains a transistor for overcurrent protector (foldback characteristic) and possible to set the protection level externally.

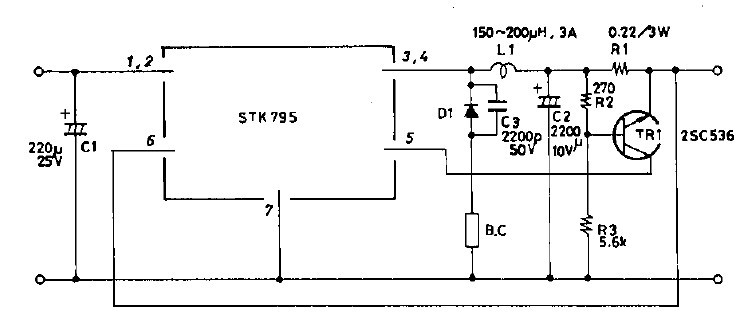

Diagrams
 |
