Product Summary
The M27C800-100F1 is an 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage. The M27C800-100F1 is organised as either 1 Mwords of 8 bit or 512 Kwords of 16 bit. The pin-out is compatible with the most common 8 Mbit Mask ROM.
Parametrics
M27C800-100F1 absolute maximum ratings: (1)Ambient Operating Temperature (3):–40 to 125℃; (2)Temperature Under Bias: –50 to 125℃; (3)Storage Temperature: –65 to 150℃; (4)Input or Output Voltage (except A9): –2 to 7 V; (5)Supply Voltage: –2 to 7 V; (6)A9 Voltage: –2 to 13.5 V; (7)Program Supply Voltage: –2 to 14 V.
Features
M27C800-100F1 features: (1)5V ± 10% supply voltage in READ operation; (2)Access time: 50ns; (3)Byte-wide or word-wide configuration; (4)8 Mbit mask ROM replacement; (5)Low power consumption: Active Current 70mA at 8MHz, Stand-by Current 50μA; (6)Programming voltage: 12.5± 0.25V; (7)Programming time: 50μs/word; (8)Electronic signature.

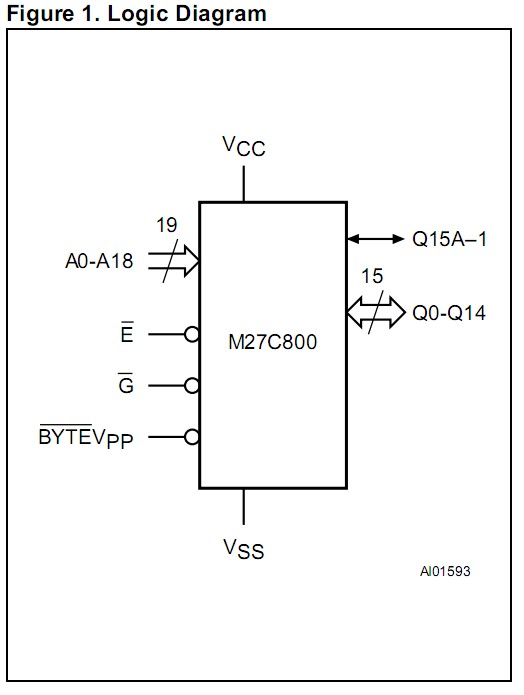

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C800-100F1 |
STMicroelectronics |
EPROM 1Mx8 or 512Kx16 100n |
Data Sheet |
Negotiable |
|
||||
