Product Summary
The EN80C188EB20 is the second generation CHMOS High-Integration microprocessor. The EN80C188EB20 has features that are new to the 80C186 family and include a STATIC CPU core, an enhanced Chip Select decode unit, two independent Serial Channels, I/O ports, and the capability of Idle or Powerdown low power modes.
Parametrics
EN80C188EB20 absolute maximum ratings: (1)Storage Temperature: -65 to 150℃; (2)Case Temp under Bias: -65 to 120℃; (3)Supply Voltage with Respect to VSS: -0.5V to 6.5V; (4)Voltage on other Pins with Respect to VSS: -0.5V to VCC + 0.5V.
Features
EN80C188EB20 features: (1)Integrated Feature Set; (2)Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O; (3)Speed Versions Available (5V): 20 MHz; (4)Available in Extended Temperature Range (- 40 to + 85℃); (5)Low-Power Operating Modes: Powerdown Mode Freezes All Internal Clocks; (6)Supports 80C187 Numeric Coprocessor Interface (80C186EB PLCC Only); (7)Available In: 80-Pin Quad Flat Pack (QFP), 84-Pin Plastic Leaded Chip Carrier (PLCC).

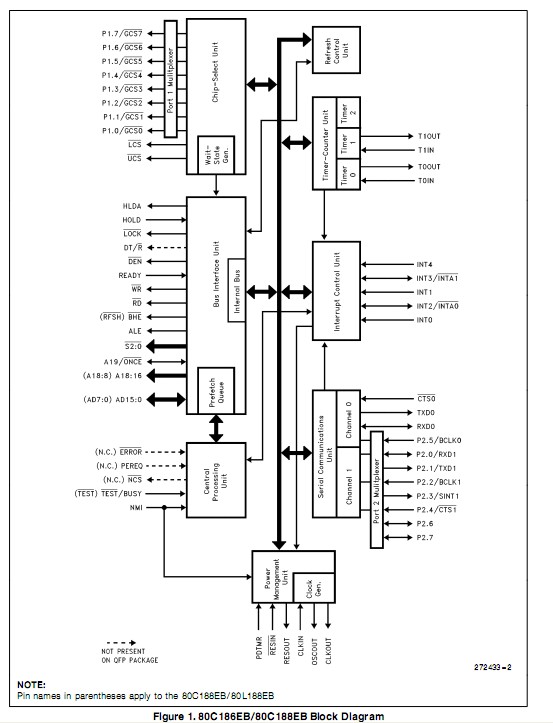

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

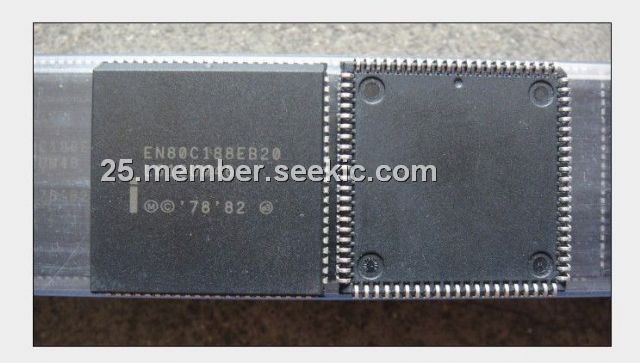

 EN80C188EB20 |
|
IC MPU 16BIT 5V 20MHZ EXT 84PLCC |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
EN80960SA16512 |
|
IC MPU I960SA 16MHZ 84-PLCC |
Data Sheet |
Negotiable |
|
||||
|
EN80960SB16512 |
|
IC MPU I960SB 16MHZ 84-PLCC |
Data Sheet |
Negotiable |
|
||||
|
EN80C186EA13 |
|
IC MPU 16-BIT 5V 13MHZ 68-PLCC |
Data Sheet |
Negotiable |
|
||||
|
EN80C186EA20 |
|
IC MPU 16-BIT 5V 20MHZ 68-PLCC |
Data Sheet |
Negotiable |
|
||||
|
EN80C186EB13 |
|
IC MPU 16-BIT 5V 13MHZ 84-PLCC |
Data Sheet |
Negotiable |
|
||||
|
EN80C186EB20 |
|
IC MPU 16BIT 5V 20MHZ 84PLCC |
Data Sheet |
Negotiable |
|
||||
