Product Summary

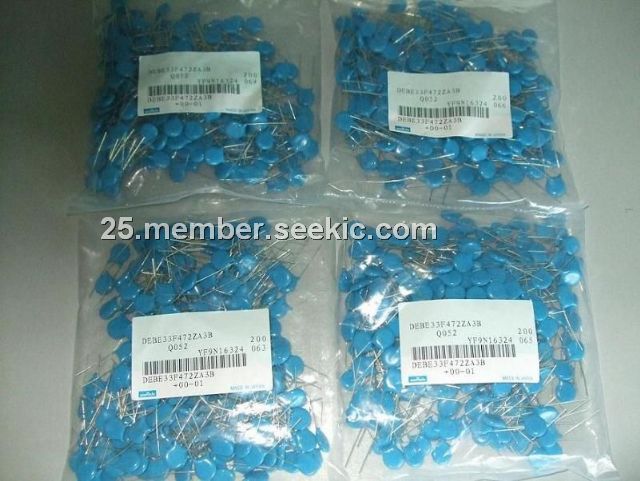

The DEBE33F472ZA3B is a safety standard certified ceramic capacitor.
Parametrics
DEBE33F472ZA3B absolute maximum ratings: (1)DC Rated Voltage: 3150(V); (2)Capacitance (pF): 4700 +80/-20%; (3)Body Dia. D(mm): 13mm; (4)Lead Spacing F: 7.5(mm); (5)Body Thickness T:6.0(mm); (6)Lead Package Long Bulk: A3B; (7)Lead Package Short Bulk: B3B; (8)Lead Package Taping: N3A.
Features
DEBE33F472ZA3B features: (1)Compact size; diameter 25% less than Type KH.; (2)Operating temperature range guaranteed up to 125 degrees (UL: 85 deg.).; (3)Dielectric strength: AC2000V (for lead spacing F=5mm); AC2600V (for lead spacing F=7.5mm); (4)Class X1/Y2 capacitors certified by UL/CSA/VDE/BSI/SEMKO/DEMKO/FIMKO/NEMKO/ESTI/NSW.; (5)Coated with flame-retardant epoxy resin (conforming to UL94V-0 standard).; (6)Taping available for automatic insertion.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DEBE33F472ZA3B |
Murata |
Ceramic Disc Capacitors 4700pF 3150volts E +80-20% |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
DEBE33A102ZA1B |
Murata |
Ceramic Disc Capacitors 1000pF +80/-20% AC 1000 volt |
Data Sheet |
Negotiable |
|
||||||||||||
|
DEBE33A222ZA2B |
Murata |
Ceramic Disc Capacitors 2200pF 1000volts E +80-20% |
Data Sheet |
|
|
||||||||||||
 |
DEBE33A222ZB2B |
Murata |
Ceramic Disc Capacitors 0.0022uF 1000Volts -20% to 80% |
Data Sheet |
|
|
||||||||||||
|
DEBE33A222ZN2A |
Murata |
Ceramic Disc Capacitors 0.0022uF 1000Volts -20% to 80% |
Data Sheet |
|
|
||||||||||||
|
DEBE33A472ZB2B |
Murata |
Ceramic Disc Capacitors 0.0047uF 1000Volts -20% to 80% |
Data Sheet |
|
|
||||||||||||
|
DEBE33D472ZA2B |
Murata |
Ceramic Disc Capacitors 4700pF 2000volts E +80-20% |
Data Sheet |
|
|
||||||||||||
